DPP-260D flat type automatic blister packaging machine

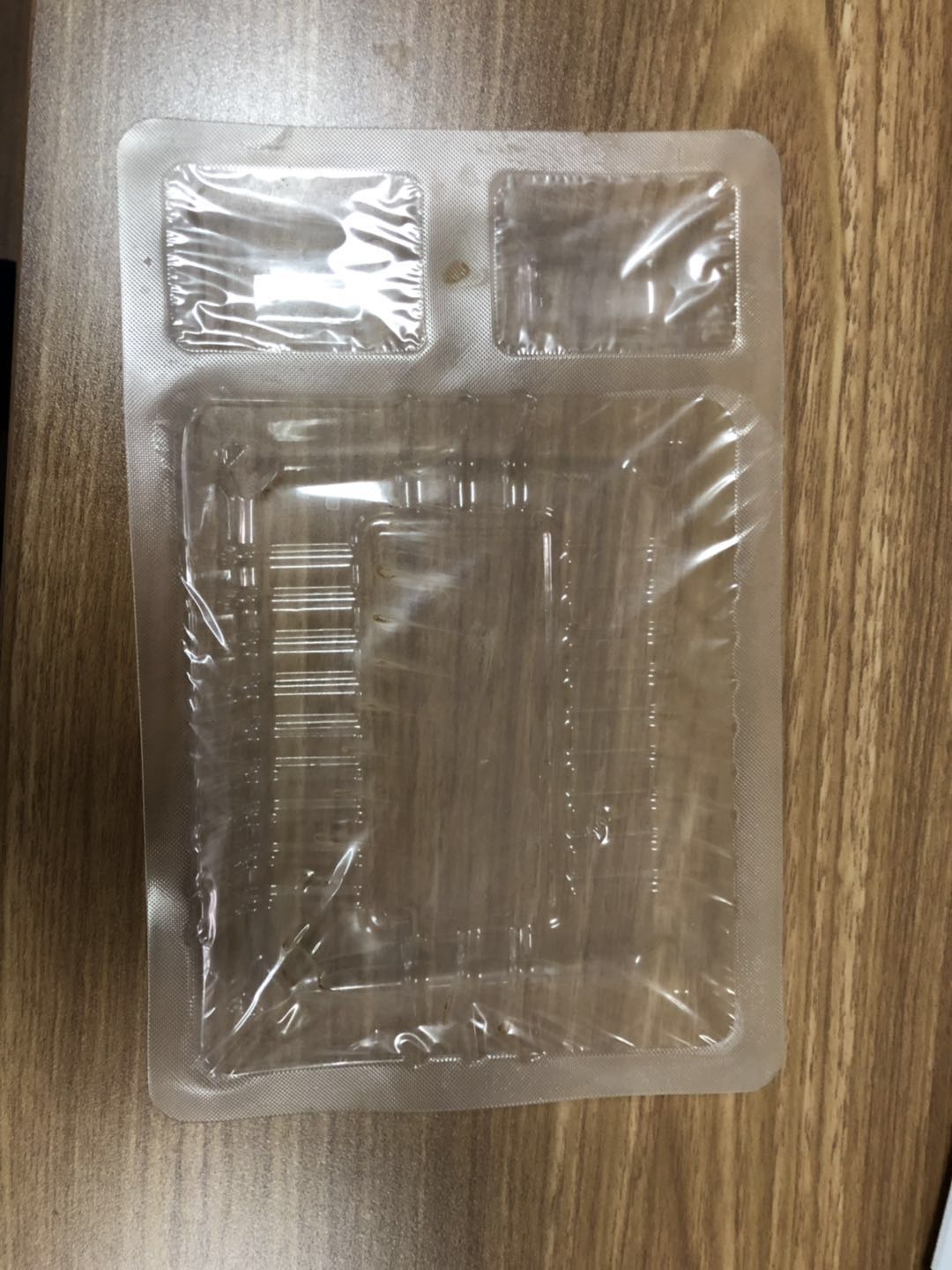

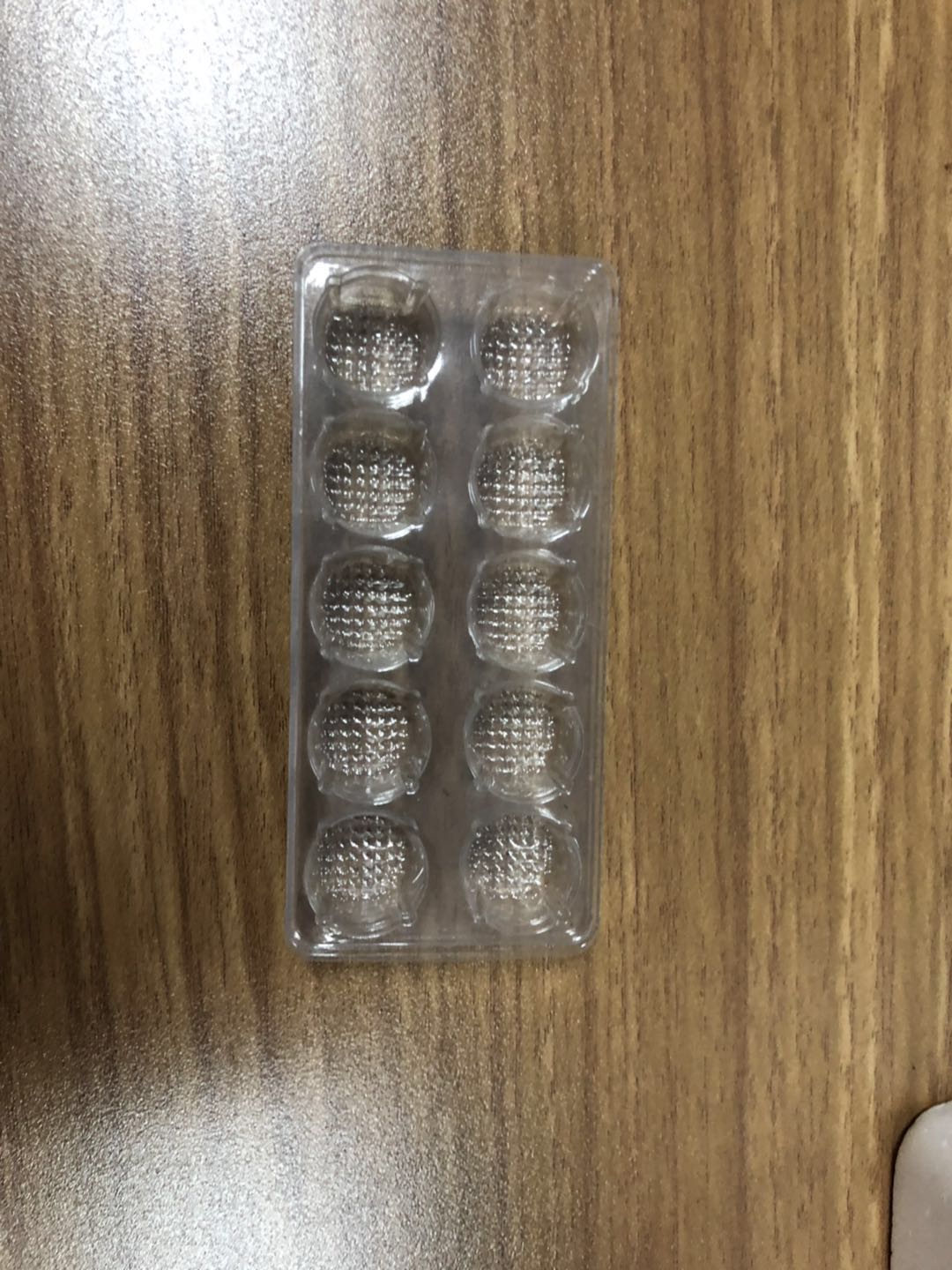

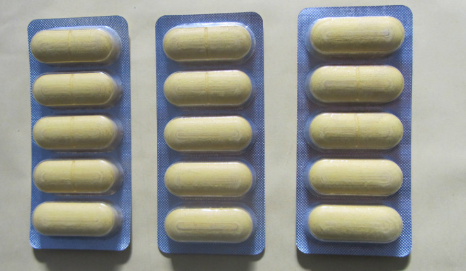

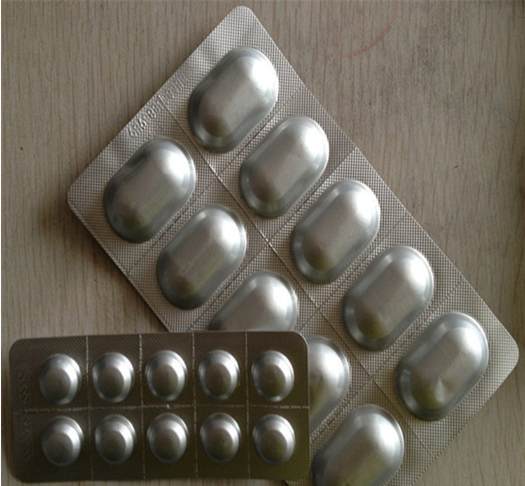

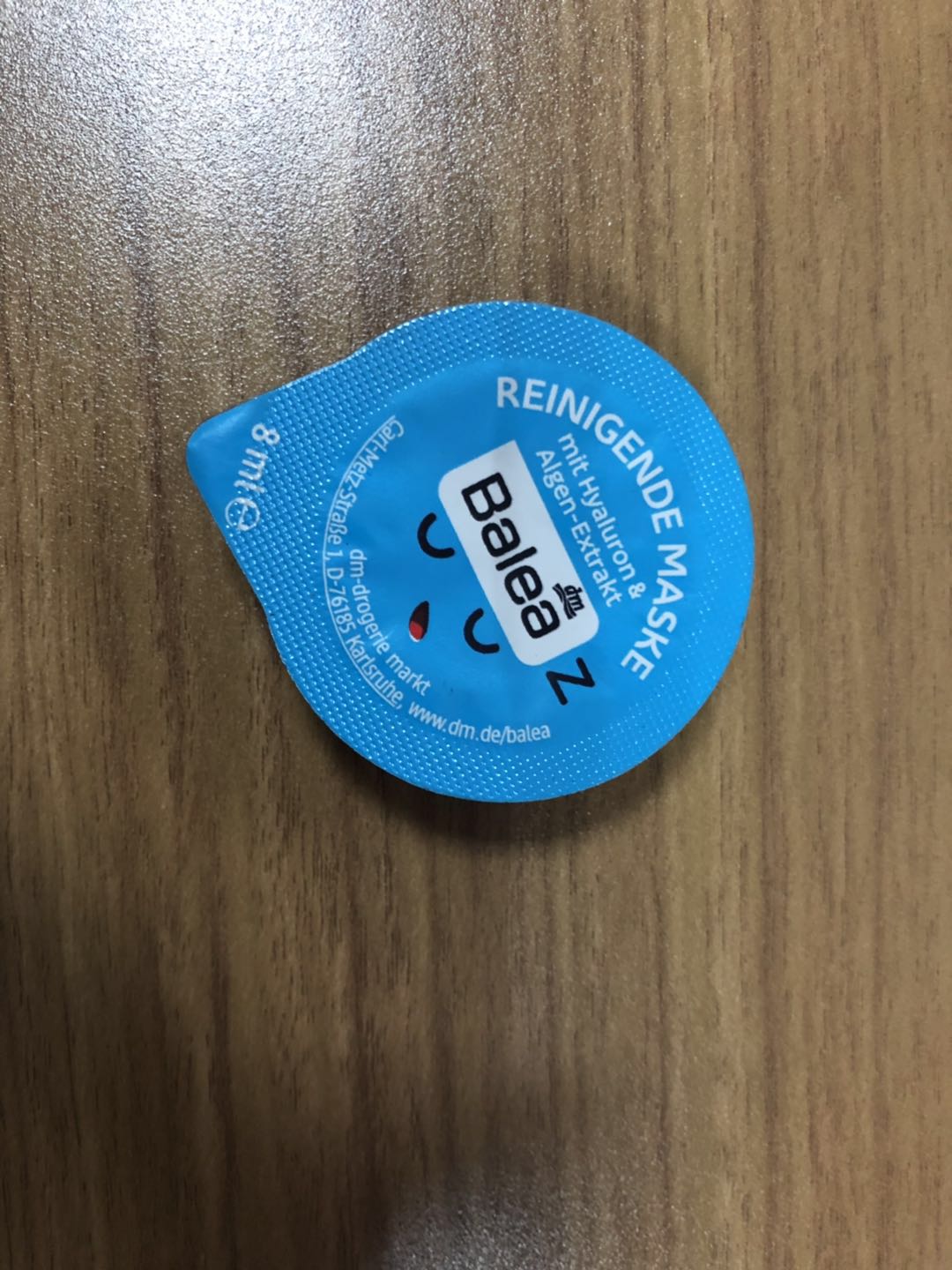

Product picture （ALU-ALU and Alu-Pvc）

Application:

It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.

Product introductions:

The machine is new innovating designed by our machine which is widely for packaging of medicine, which of function are reached to the advanced level of China. It is used for tablet, capsule, pill, honey pill, candy, liquid, paste, disposable syringe in regular and irregular shaped Alu/PVC, Alu/Alu or Paper /Alu in the field of pharmaceutical, health product, foodstuff, cosmetic , medical instrument and etc.

Product features:

1.Forming, heating sealing, batch marking, impression and cutting are with

Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.

2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.

3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.

4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.

5.The body of machine can be produced under the split production for easier moving into the working room.

Note:

Optional Equipped with Photocell detecting device

Optional Equipped with Acylic glass cover

Optional Equipped with ink jet coding device

Technical Specifications:

Punches Frequency: 6-50times/min

Production capacity: 35000-230000pcs/hour

Max. Forming area and depth : 240x180x26mm

(Standard plate size: 240x150x14mm)

Stroke travel range: 40-160mm( can be designed for length over to 180mm as per user’s required)

Standard plate size: 80x57mm( designed as per user’s requirement)

Air pressure: 0.4-0.6Mpa

Air compressed required: ≥0.3m3/min

Total power supply: 380V/220V 50Hz 6.2kw

Main motor: 1.5KW

PVC hard film: 0.15-0.5×250 mm

PTP Aluminum film

Dialysis paper: 50-100g×250mm

Mould cooling: Tap water or recycling water

Overall dimension: 3000×730×1600mm(L×W×H)

Weight: 1400kg

Electrical configuration list

If some is out of stock, we will replace it with parts of the same quality without further notice to the customer.
