DPP-140 flat type Al/PVC & Alu/Alu blister packaging machine
Category:
Blister packing machine
Products
Product Description
Features:
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device (Omron Sensor) for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Work process

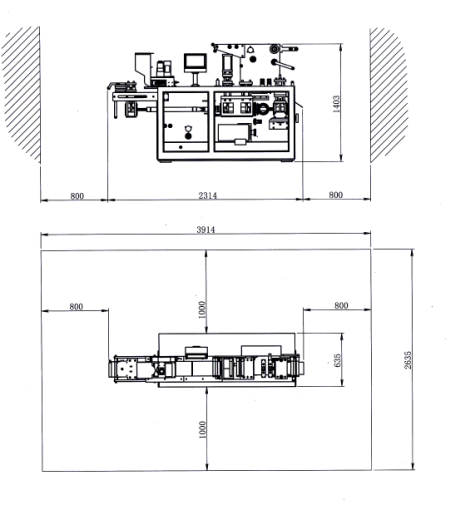

Diagram
Configuration list
|
Item |
Name |
Spec/model |
Brand |
Qty |
|
1 |
Traction Cylinder |
SSA φ32×15 |
Kaogeer |
2 |
|
2 |
Main Motor |
YS1500W-4R |
ZhejiangTaibang |
1 |
|
3 |
Forming heating plate |
170×130×20 |
Zhejiang hongxing |
2 |
|
4 |
Heating sealing plate |
158×110×20 |
Zhejiang hongxing |
1 |
|
5 |
Frequency inverter |
DVA-3S0015G |
DELAIER |
1 |
|
6 |
Feeding motor |
70-CK-25-K |
MAILI |
1 |
|
7 |
-Waste material collection motor |
4GN-15-K |
MAILI |
2 |
|
8 |
Thermocouple |
TES-2M |
Tes Taiwan |
2 |
|
9 |
Air circuit breaker |
C65N-25A/3P |
Schneider |
1 |
|
10 |
Air circuit breaker |
C65N-10A/1P |
Schneider |
2 |
|
11 |
Air circuit breaker |
C65N-6A/1P |
Schneider |
1 |
|
12 |
Relay |
HRS4H-S |
HKE |
5 |
|
13 |
PC controlling panel |
/ |
Wenzhou Tuanjie |
1 |
|
14 |
Solid relay |
SSR-40DA |
Fotek Taiwan |
2 |
|
15 |
Controlling Transformer |
JBK3-63 |
Zhejiang Chint |
1 |
|
16 |
Electromagnetic valve |
SG4V210-08 |
AirTAC |
3 |
|
17 |
Emergency button |
XB2-BS542 |
Schneider |
1 |
|
18 |
Photoelectrical sensor |
J12-A4JK |
BDL |
3 |
