ZHJ-220D Automatic Cartoning Machine
Category:
Automatic cartoning machine
Product Description
This machine is suitable for packing blisters, tubes, ampoules and other related objects into boxes intermittently. The highest speed can up to 180boxes/min. It has advantages of high packing efficiency and good quality, and is hi-tech product with structure of mechanical-electrical integration. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically.
It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control, and photoelectric to supervise and control each station. So that once something unexpected happens during its running, it will stop and display the reasons automatically, which can solve the troubles in time. This machine can be used separately, and also can be linked to other machine to be a production line. Note: this machine can also equip hot melt glue device to do hot melt glue sealing for box.
Main technical parameters
|
Power Supply |
AC380 V TN-S supply 50 HZ |
|
Dimension (L×H×W) |
4450×1460×1700 mm |
|
Weight |
2500KG |
|
Capacity |
100-180 boxes/min |
|
Air Consumption |
20m³/h (pressure of 0.5-0.7mpa) |
|
Packing Material |
Specification of Box：250-350g/㎡ (depended on size) |

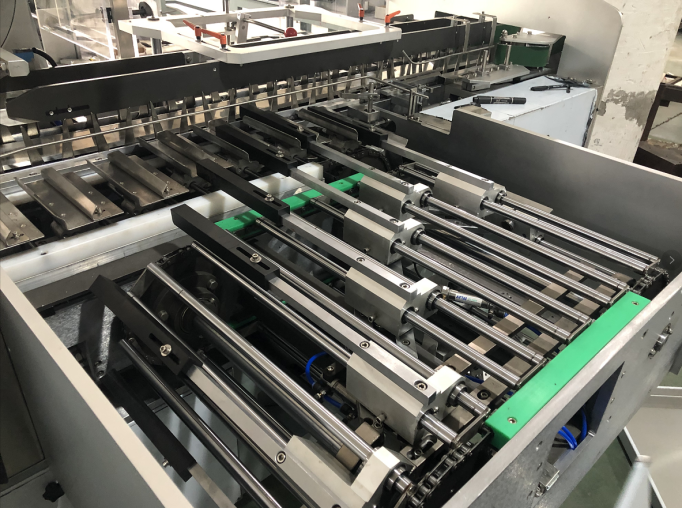

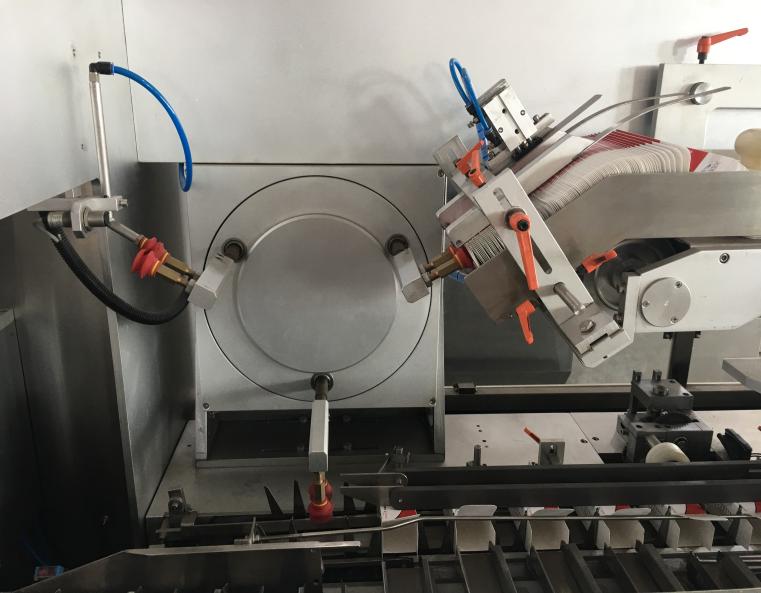

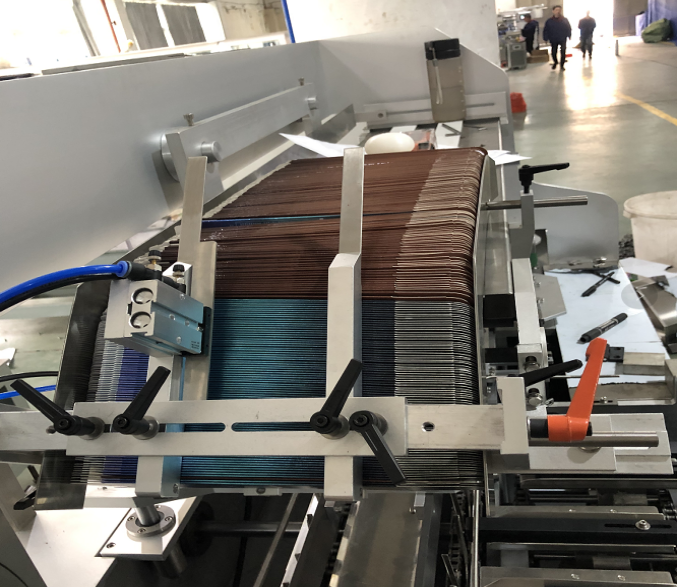

The details pictures:
Functions and Characters
This machine is a new product from our company. With advantages of wide range of application, high efficiency, stable running and is multi-usage. It can apply to packing medicine, food and toiletry. Functions are as follows:
1. The machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically.
2. It adopts PLC to control, and photoelectric to supervise and control each station. So that once something unexpected happens during its running, it will stop and display the reasons automatically, which can solve the troubles in time.
3. There are main driving motor and clutch brake inside the rack, and torque overload protector for each part of the transmission system on the machine board, which can separate the main driving motor and each part of transmission when it is in the case of overload, so that ensure the safety of the machine.
4. The machine is equipped with eliminating device. Leaflet, medicine plate and box will be detected by sensor before, and then product be exported after embossing batch number and closing box. The waste (no medicine plate or leaflet) will be found during detection process and removed at the outlet, so that ensure product quality fully meet the eligibility requirements.
5.The machine is continuous cartoner, which is more stable and faster than traditional intermittent cartoner.
6. The pusher way of machine is continuous slowly pushing, ensuring product is not damaged during the process of insertion.
7.This machine can be used separately, and also can be linked with other machine to be a production line.
Electrical Component
|
Item |
Model |
Qty. |
Brand |
|
A.C.Contractor |
LCIE1810M5N |
2 |
Schneider |
|
Air Switch |
OSMC32N3C16 |
2 |
Schneider |
|
Air Switch |
OSMC32N2C10 |
2 |
Schneider |
|
Air Switch |
OSMC32N1C6 |
2 |
Schneider |
|
Intermediate Relay |
RXM4AB2BD |
2 |
Schneider |
|
Button |
ZBZ BS54C |
1 |
Schneider |
|
Button |
ZBZ BA4C |
1 |
Schneider |
|
Button |
ZBZ BA3C |
1 |
Schneider |
|
Solid Relay |
G6B-47BND |
6 |
Omron |
|
Power Switch |
S8JC-205024C |
1 |
Omron |
|
Communication Module |
FX3G-485-BD |
1 |
Mitsubishi |
|
PLC |
FX3G-60MT/ES-A |
1 |
Mitsubishi |
|
Transducer |
FR-D720S-2.2K-CHT |
1 |
Mitsubishi |
|
Touch Screen |
GT1050-QBBD-C |
1 |
Mitsubishi |
|
Remote Control |
F21-E18 |
1 |
Array |
|
Transformer |
JBK3-63 |
1 |
Changcheng |
|
SUCKER |
VB40 |
4 |
VETC |
|
Servo |
ASD-A2-0421-2-L |
2 |
Delta |
|
Eye detection |
GTE6 |
3 |
SICK |
|
Motor |
CH-28 2.2 kw |
1 |
GPG |
|
DRY-PUMP |
RX40 |
1 |
RUIXU |
|
Turn table |
NWRV50 |
1 |
HANGTAI |
|
Turn table asynchronous motor |
Y2-71M2-4 |
1 |
XL-MOTOR |
|
Transmission motor |
5GU-10-K |
1 |
MAILI |
|
Pneumatic components |
MAL16X100 |
1 |
AIRTEC |
Packing list
|
NO. |
Name and Size |
Unit |
Qty. |
Note |
|
1 |
SDZ-220D Multifunction Automatic Cartoner |
set |
1 |
|
|
2 |
（0 —9）＃Steel Word |
pair |
Per 10 |
|
|
3 |
Screwdriver "word", "cross" |
piece |
Per 1 |
|
|
4 |
4、5、6、8、10mm Allen Wrench |
piece |
Per 1 |
|
|
5 |
14—17mm Wrenches |
piece |
1 |
|
|
6 |
8—10mm Wrenches |
piece |
1 |
|
|
7 |
Vacuum Cups |
piece |
6 |
|
|
8 |
Flat Belt |
piece |
6 |
|
|
9 |
Timing Belts 244L075 |
piece |
1 |
|
|
10 |
Oil Gun |
pair |
1 |
|
|
Technical documents |
||||
|
1 |
Product Manual |
part |
1 |
|
|
2 |
Products Factory Certification |
part |
1 |
|
