ZHJ-160D Automatic Cartoning Machine
Category:
Automatic cartoning machine
Product Description
|
Main Technical Parameter |
|
|
Production capacity |
80-110 boxes/min |
|
Max. size of box(LxWxH) |
200x85x70mm |
|
Min. size of box(LxWxH) |
55x25x12mm |
|
Specification of box |
250-350g/ m2 |
|
Volume of air consumption |
20m3/h (pressure 0.6-0.8Mpa) |
|
Total power |
1.5kw |
|
Power supply |
380V 50HZ |
|
Overall Dimension(LxWxH) |
3500x1320x1700mm |
|
Weight |
1300kg |
Features:
This machine is suitable for packing food， blisters, tubes, ampoules and other related objects into boxes intermittently. The highest speed can up to 100 boxes/min. It has advantages of high packing efficiency and good quality, and is hi-tech product with structure of mechanical-electrical integration. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control, and photoelectric to supervise and control each station. So that once something unexpected happens during its running, it will stop and display the reasons automatically, which can solve the troubles in time. This machine can be used separately, and also can be linked to other machine to be a production line. Note: this machine can also equip hot melt glue device to do hot melt glue sealing for box.
|
ZHJ-160D Packing List |
|||||
|
No. |
Product Name |
Qty. |
Remark |
||
|
1. |
ZHJ-160D Auto. Packing Machinery |
1 |
|
||
|
2. |
Steel letters（0-9） |
10 for each |
|
||
|
3. |
“一 十” Screw driver |
1 for each |
|
||
|
4. |
Hex wrench1.5-10 |
1 set |
|
||
|
5. |
adjustable wrench |
1 |
|
||
|
6. |
14-7,17-19 Wrench |
1 for each |
|
||
|
7. |
8—10 Wrench |
1 |
|
||
|
8. |
vacuum chuck |
4 |
|
||
|
9. |
Chip base band |
60×930×2 |
2 |
|
|
|
12×510/680×1.2 |
2 for each |
|
|||
|
10. |
244L075 hold-in range |
1 |
|
||
|
11. |
L173 hold-in range |
1 |
|
||
|
12. |
Oil gun |
1 |
|
||
|
13. |
H32 Plastic Chain |
50 |
|
||
|
14. |
Plastic Chain |
20 |
|
||
|
15. |
Plastic pin |
20 |
|
||
|
Document |
|||||
|
1. |
Instruction |
1 |
|
||
|
2. |
Certificate of conformity |
1 |
|
||
|
ZHJ-160D Cartoning Machine Configuration List |
|||
|
Name |
Model |
Qty.(set) |
Brand |
|
HMI |
GS21/07-WTBD |
1 |
Mitsubishi |
|
PLC |
FX3G-60MT/ES-A |
1 |
Mitsubishi |
|
Transducer |
FR-D720S-7.5K-CHT |
1 |
Mitsubishi |
|
AC Contactor |
LC1-D1810M5N |
1 |
Schneider |
|
Small Relay |
G6B-1174P-FD-US |
5 |
Omron |
|
Intermediate relay |
RXM4AB2BD |
2 |
Schneider |
|
Solid Relay |
G6B-47BND |
3 |
Omron |
|
Motor |
CH-28 |
1 |
Tai Bang |
|
Photoelectric Switch |
GTE6 |
3 |
SICK |
|
Proximity Switch |
FTR-RN4DB |
2 |
Turck |
|
Air switch |
OSMC32N 3C16/2C10/1C6 |
I for each |
Schneider |
|
Switch Group |
HZ12-25/04 |
1 |
Chang Jiang |
|
Power Switch |
S8JC-205024C |
1 |
Omron |
|
Solenoid Valve |
4V210-08 |
5 |
AirTAC |
|
Circuit Breaker |
3C16 2C10 IC6 |
1set |
Schneider |
|
Vacuum Chuck |
VB20 |
3 |
Vtec |
|
Cylinder |
MA16x100-S-CA |
1 |
AirTAC |
|
Button Group |
ZBZ-B S54C/A4C/A3C |
I for each |
Schneider |
|
Communication Module |
FX3G-485-BD |
1 |
Mitsubishi |
|
Vacuum Pump |
RMS8024(2K) |
1 |
Becker |
|
Vacuum Solenoid |
VP542R-5DD1-03A |
4 |
SMC |
|
Stainless Steel Material |
SUS-304 |
|
|

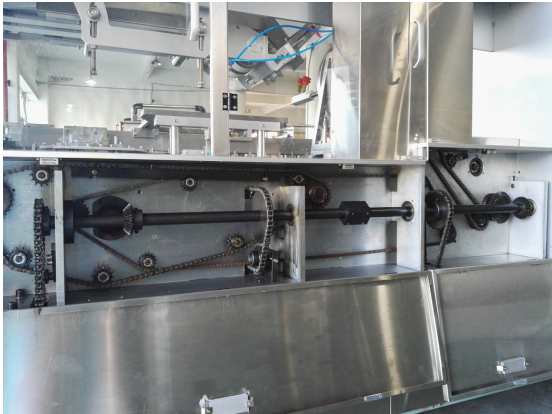

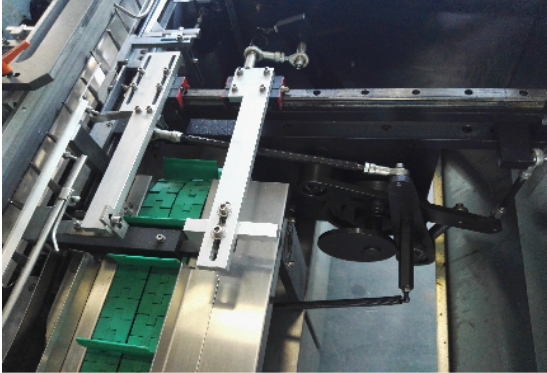

The drive parts

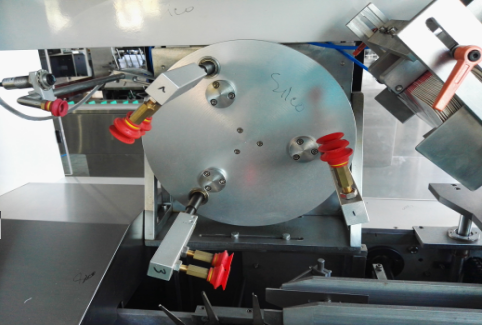

Suck and open box rotary device

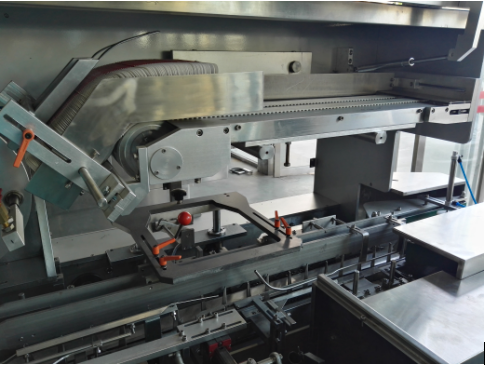

Box storage

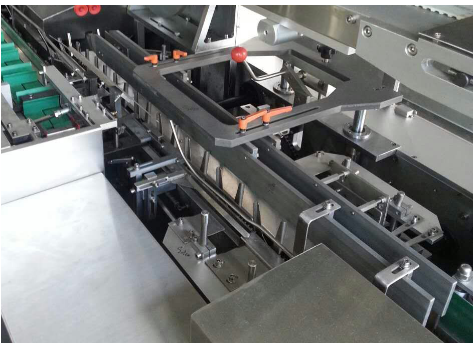

Push box device
Sealing box device
